TCC TC-760
Moving Magnet/Moving Coil Phono Preamp
TC-760
TC-760 rear
$53.50 plus shipping (see below)

The TC-760's similar MM specs and sound quality rival those of the TC-750, but this model adds the ability to connect moving coil cartridges. Whether you own an MC cartridge now or envision upgrading to one in the future, this preamp gives you the flexiblity to connect BOTH MM and MC cartridge-equipped turntables at the same time, selecting between them with the flick of a switch. Most MC preamps and matching transformers price out at ten times and more what this'll cost you; a very cost-efficient way to dip your toe in the moving coil end of the pool and see if it's for you.


If connecting to a computer, simply substitute it in the diagram for the amplifier shown below. Use the sound card's LINE  INPUT jack,
NOT the MIC IN.


TC760 hookup diagram

Any of the following labelled amplifier/receiver/minisystem input jacks can be used;  AUX, TAPE IN/PLAY, LINE IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD (use the L&R AUDIO  jacks so labelled; ignore the actual yellow VIDEO  jack if present).

  • 12 volt DC operation; will work anywhere in the world
  • 60 day defective exchange warranty
  • Total harmonic distortion: 0.06% max
  • RIAA freq response 20hz-20,000hz +/- 0.5dB;
    S/N ratio 70dB MC, 75dB MM
  • Input sensitivity; MC  600uV,  MM 3.0mV
  • CE certified; nice packaging suitable for gifting
  • gold plated jacks and black anodized metal casing
  •   ground wire terminal; power switch and indicator
  • includes RCA cable and miniplug adaptor
  • Dimensions 183mm x 73mm x 37mm

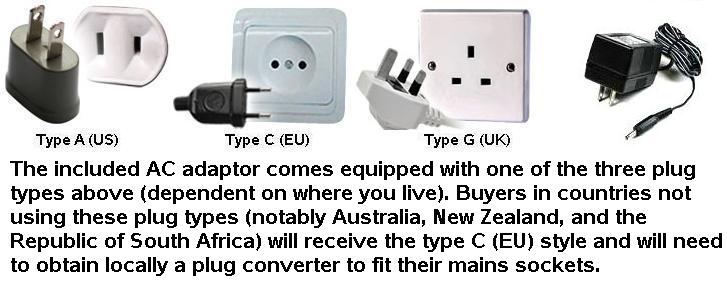

  • includes AC adaptor to match destination
    (USA/Canada or overseas)


Visit our FAQ page for more info about purchasing and using this product.

Our support and info request email link can also be found there.
TC-760 box

patch cordminiplug
US and Canadian visitors can purchase using;

          mail andfaxform
Priority Mail shipping is $6.00 for a total of $59.50
Overseas visitors can purchase using;


Airmail letter post worldwide shipping is $16.00 for a total of $69.50
US residents can purchase using; Amazon
(note that Amazon's shipping charges are higher

 on most items; see our FAQ page for more info)
