Technolink TC-760LC
Moving Magnet/Moving Coil Phono Preamp
Available in both BLACK and SILVER finish!
Now includes improved regulated power supply usable worldwide!

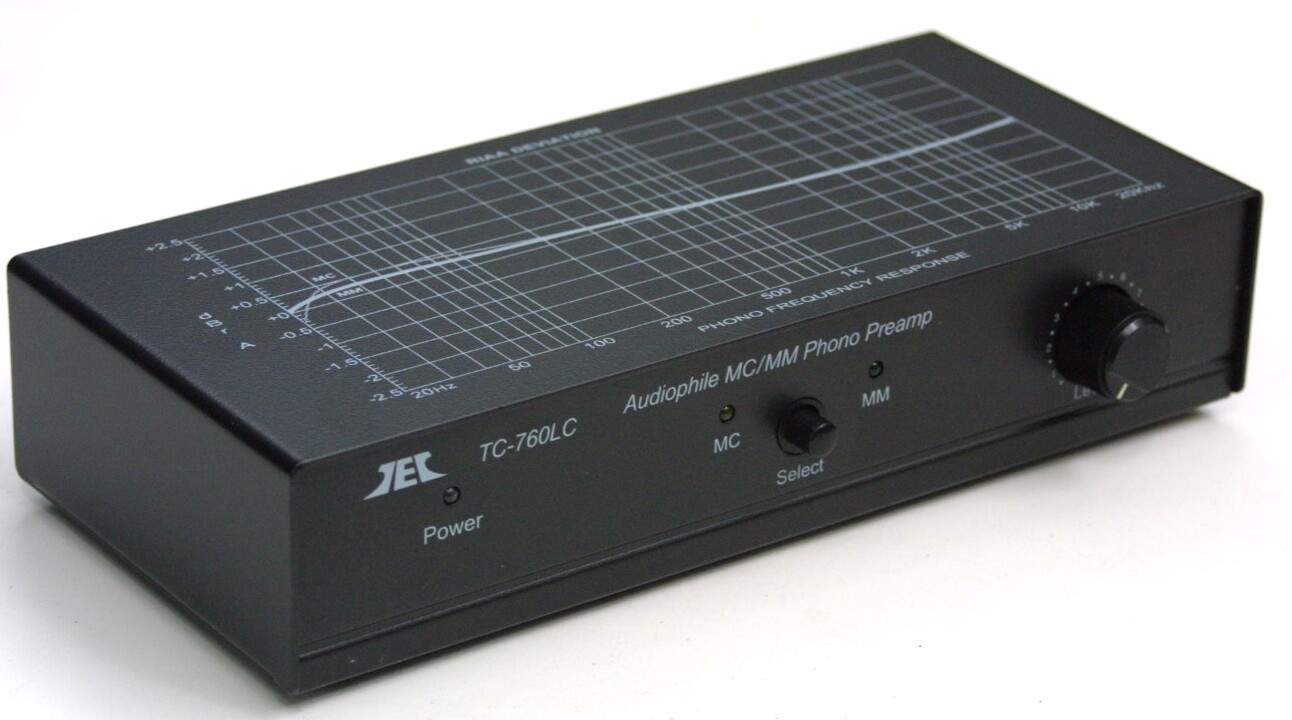

TC-760LC
Black Version
$73.50 plus shipping

(see below)

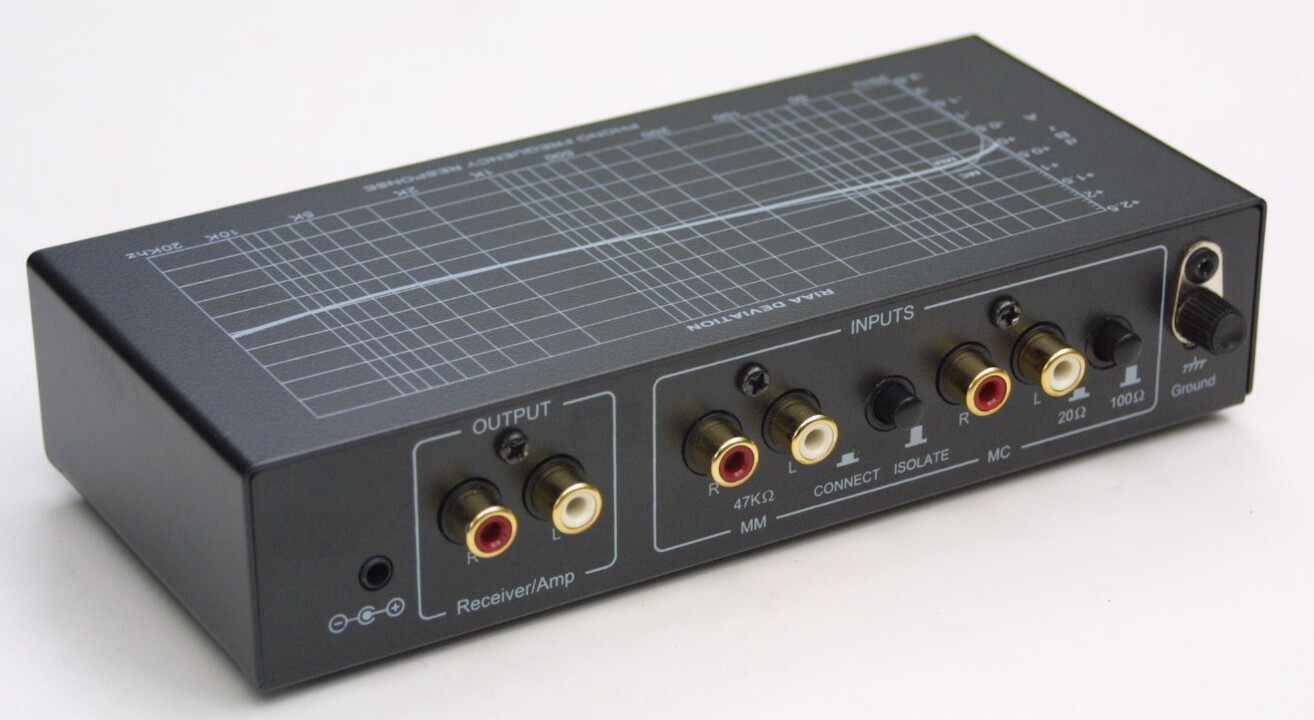

TC-760LC rear


FAQ
The NAD PP-2 is a great product; for years it has ruled the roost among inexpensive MM/MC preamps. But now our new TC-760LC aims to change that. Additional features like an output level control, ability to connect MM and MC turntables simultaneously (selecting between them at the push of a switch), and selectable hi/lo MC input inpedance make the TC-760LC the better value; superior specs make it the better choice as well. A price way below thePP-2 provides the frosting on this particular cake! Click on the images to enlarge. Now available in both black and silver versions.

TC-760LC
  • 12 volt DC operation; will work anywhere in the world
  • Total harmonic distortion: <0.05%
  • RIAA freq response 20hz-20,000hz +/- 0.5dB
  • S/N ratio  >82dB MM  /  >75dB MC ; gain MM 38dB / MC 58dB
  • Input sensitivity; MC  600uV /  MM 3.0mV
  • selectable hi range (100 ohm) / lo range (20 ohm) MC input impedance
  • CE certified; nice packaging suitable for gifting
  • gold plated jacks and black anodized metal casing
  • Ground wire terminal; click HERE to see why you need this feature
  •    power indicator; variable output level control
  • free RCA cable and miniplug adaptor included
  • Dimensions 180mm x 73mm x 37mm
  • One year defective exchange warranty

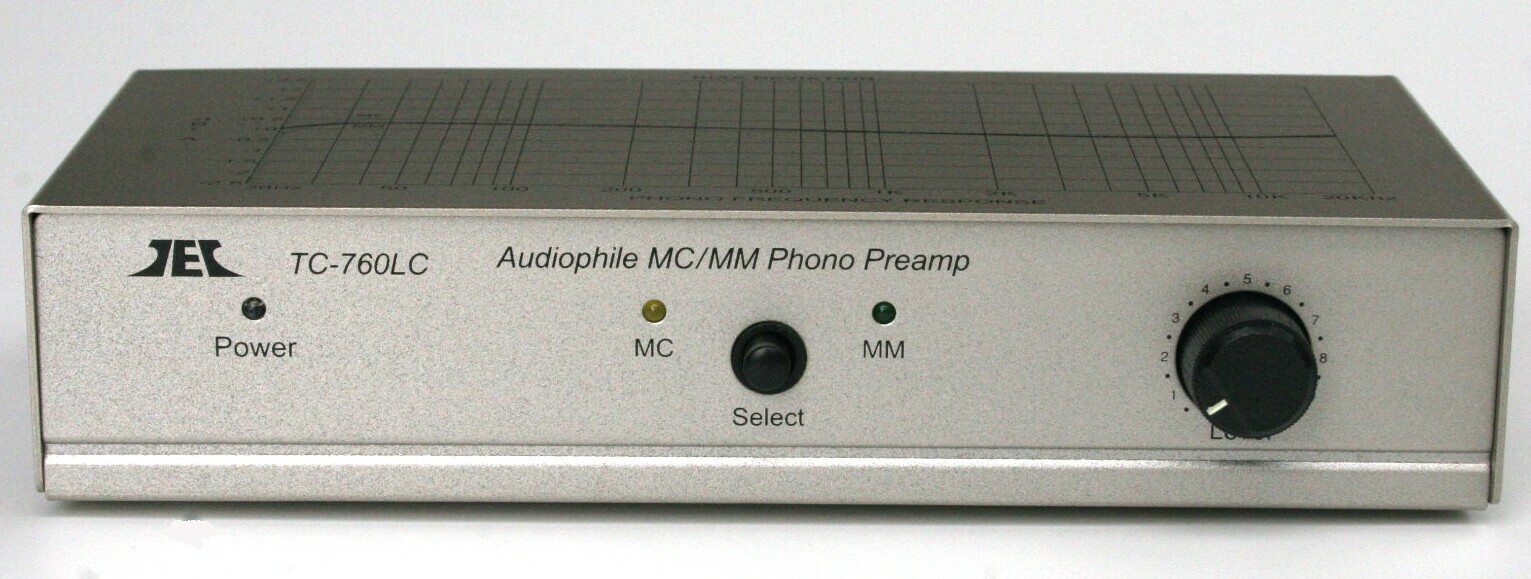

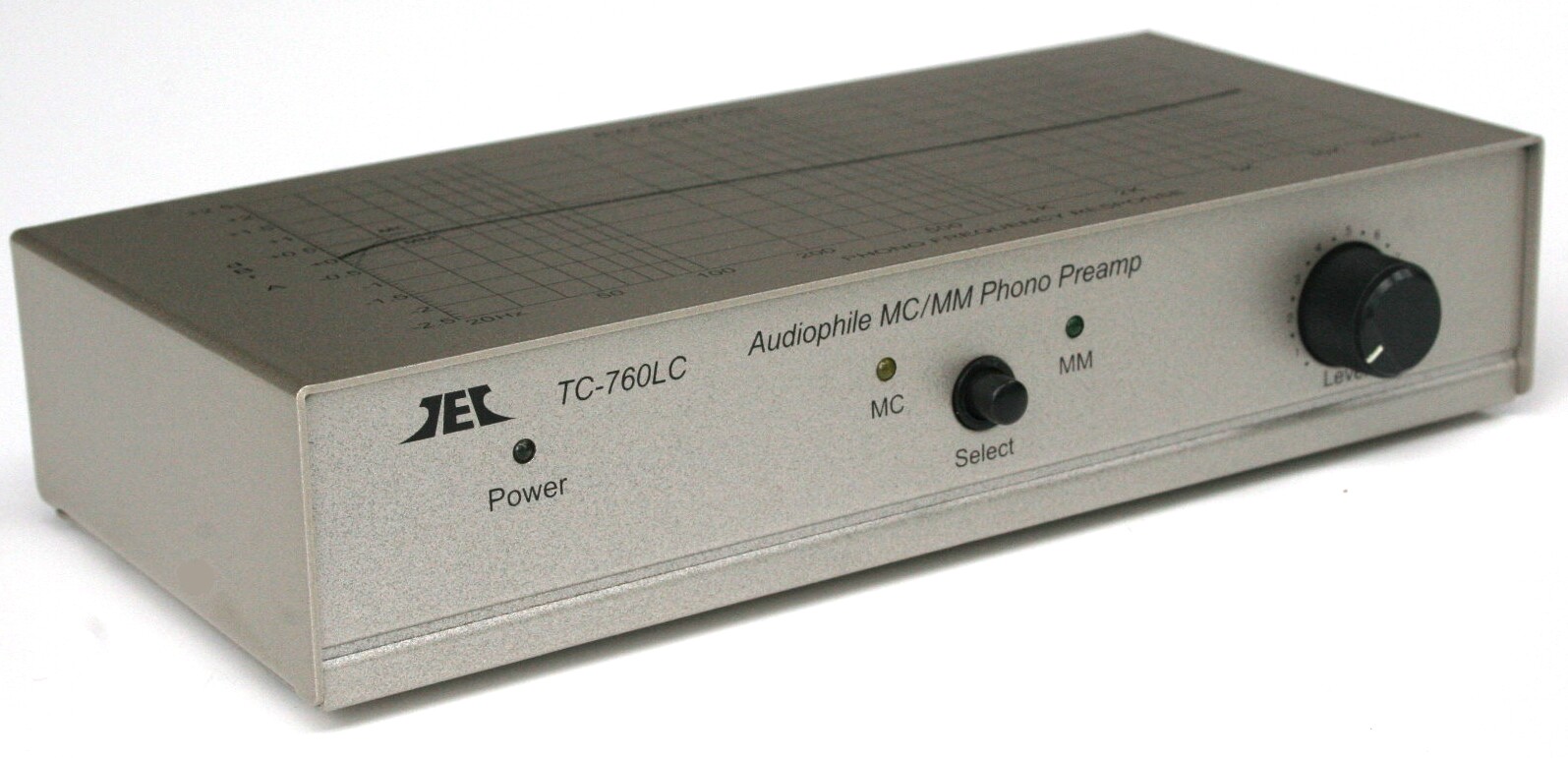

 TC-760LC
 Silver Version
$73.50 plus shipping
(see below)

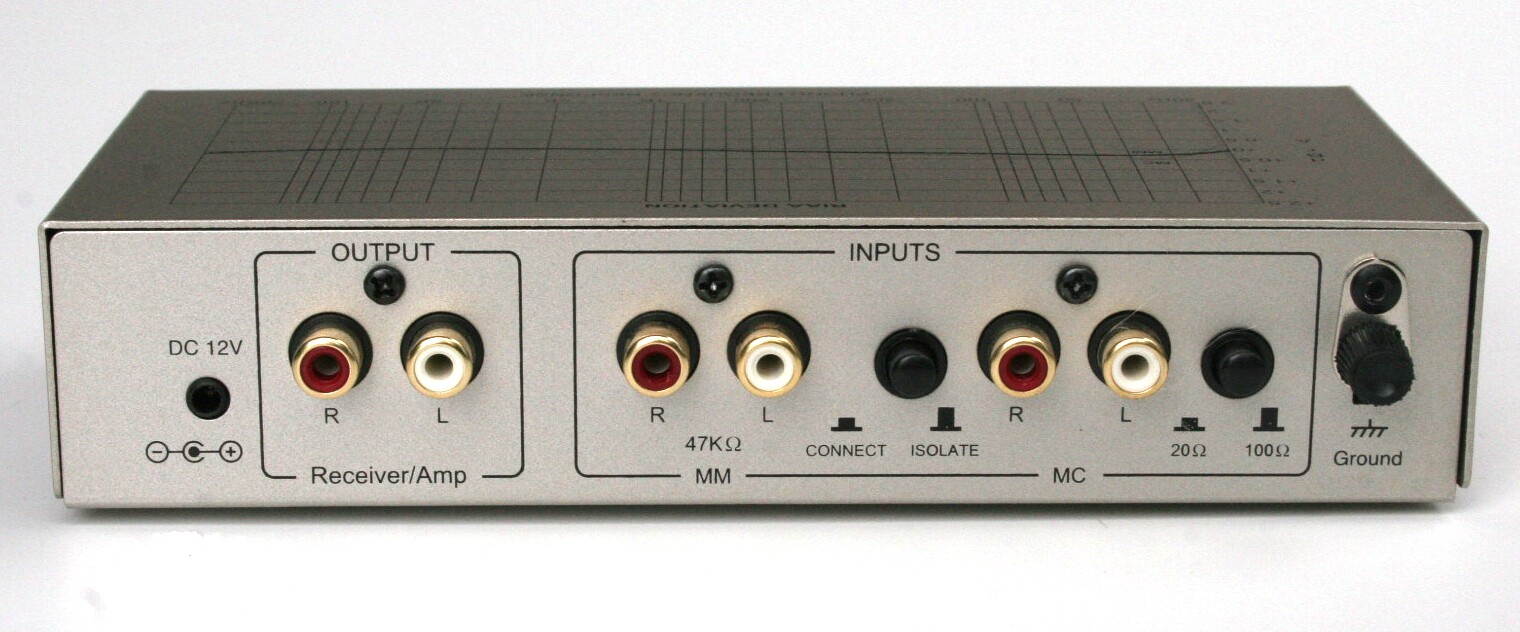

TC-760LC rear

included items

We include free of charge a stereo patch cord
 (for connection to a receiver or minisystem)
and a mini-plug adaptor for use with computers.
The AC adapttor is also included.

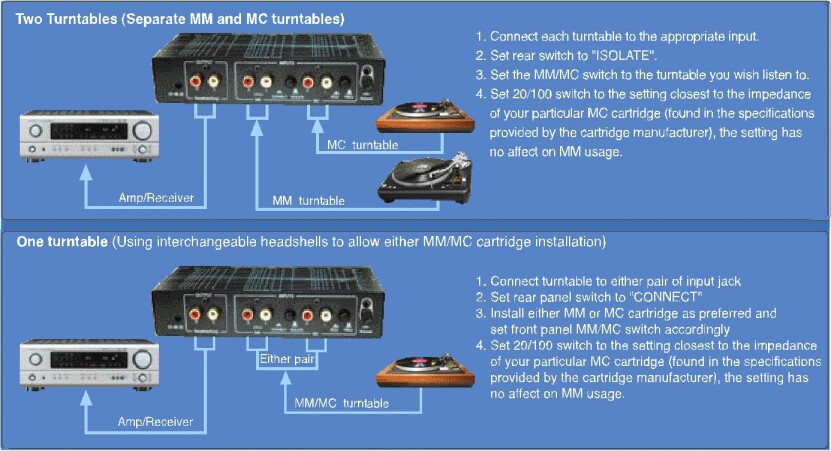

If connecting to a computer, simply substitute it in the diagram for the amp/receiver shown below. Use the sound card's LINE  INPUT jack, NOT the MIC IN.  Click on the diagram to see a larger version.

Diagram

Any of the following labelled amplifier/receiver/minisystem input jacks can be used;  AUX, TAPE IN/PLAY, LINE IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD (use the L&R AUDIO  jacks so labelled; ignore the actual yellow VIDEO  jack if present).


Box
plug types
Ready to purchase?
We offer multiple payment methods.

Choose the payment method you prefer at the right. Your transaction is then completed on the payment processor's secure website. Because NO personal or payment info is entered here, your online purchase is as secure as possible. Amazon Payments usage requires prior membership, but both Authorize.net and Paypal are happy to accept any major credit card. All three provide immediate online and email payment verification; tracking and customs form information is provided when we ship to you (most orders are sent same or next business day).

  • US Priority Mail shipping is $8.00
  • Canada USPS shipping is $14.00
  • Worldwide USPS shipping is $20.00
Items shipped outside the USA may be subject to import duty, fees and tariffs as determined by the destination country; these  costs are usually collected at the time of  delivery and are the buyer's liability. We do not mark merchandise as "gifts" or otherwise falsify customs declarations.
