Technolink TC-780LC
Stereo Line Level Amp / Booster
Available in BLACK or SILVER Finish

front

$49.50 plus shipping (see below)

Do you have a line level source (TV audio, MP3 player, video game etc) which simply isn't loud enough? One that forces you to crank up your receiver or amp volume control, simply to match your other sources? Or perhaps you need to run a long line between your TV audio line out and your receiver on the other side of the room, but find too much level is lost, or worse, interference from hum or a radio station is induced. This product is the fix. The TC-780LC provides up to 20dB of gain with any line level source, allowing longer cable runs or that "bump" you need to cure low volume issues. Used in series following one of our phono preamps (see the middle illustration at the right), the TC-780LC can be used to compensate for low output phono cartridges (B&O MMC series owners, take note!), so that you don't have to crank the volume every time you play a record. Or you can use it to add a volume control between a line level source and a power amp which has no level adjustment of its own. The 5-pin DIN in/out jacks match those found on older European brands including Bang & Olufsen, Tandberg and Revox, while the RCA jacks match virtually everything else. Connecting to the front panel miniplug jack automatically bypasses the rear inputs, allowing temporary hookup of iPods and MP3 players for listening or recording. Now available in both BLACK and SILVER! Click on the images to enlarge.

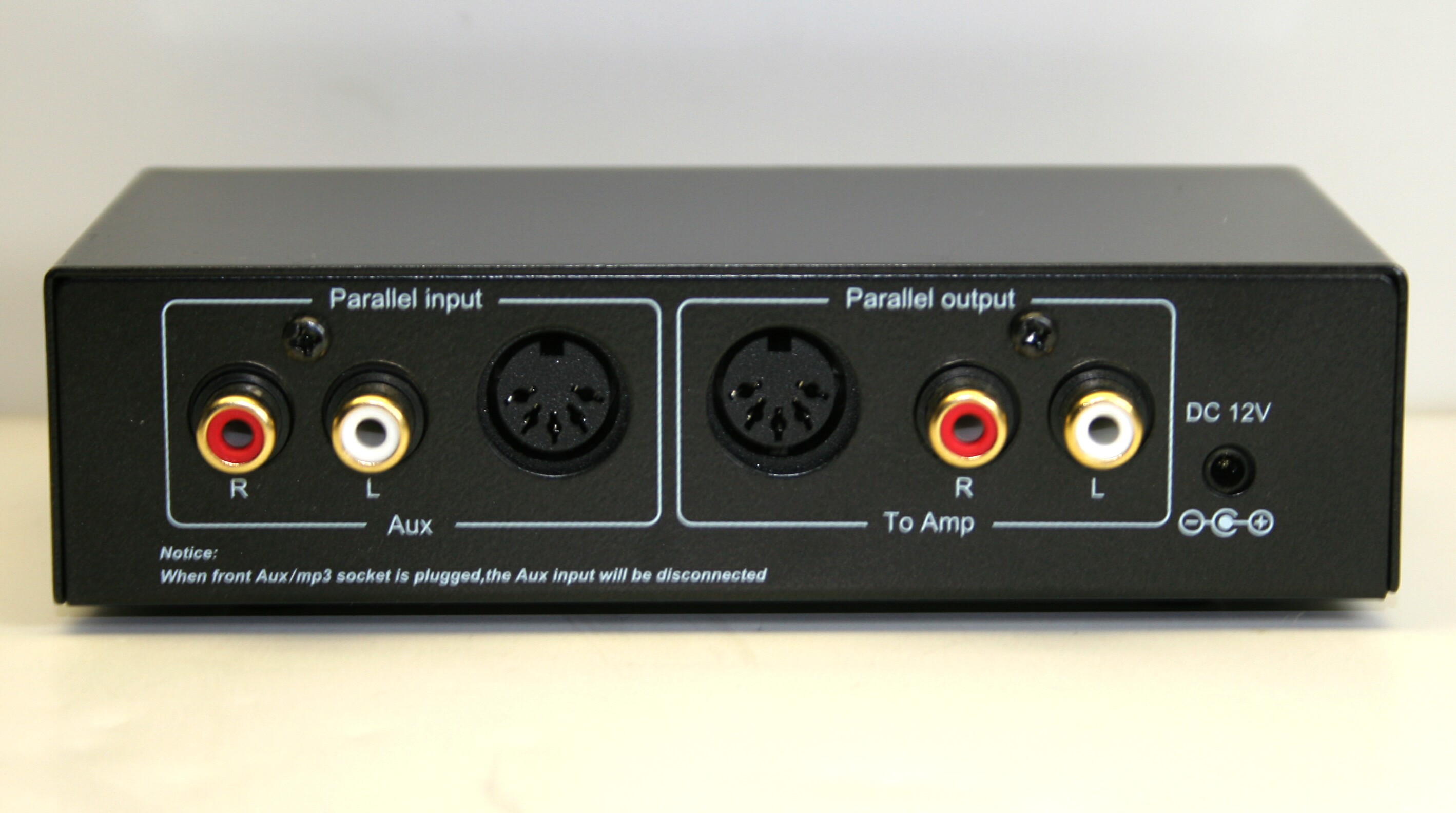

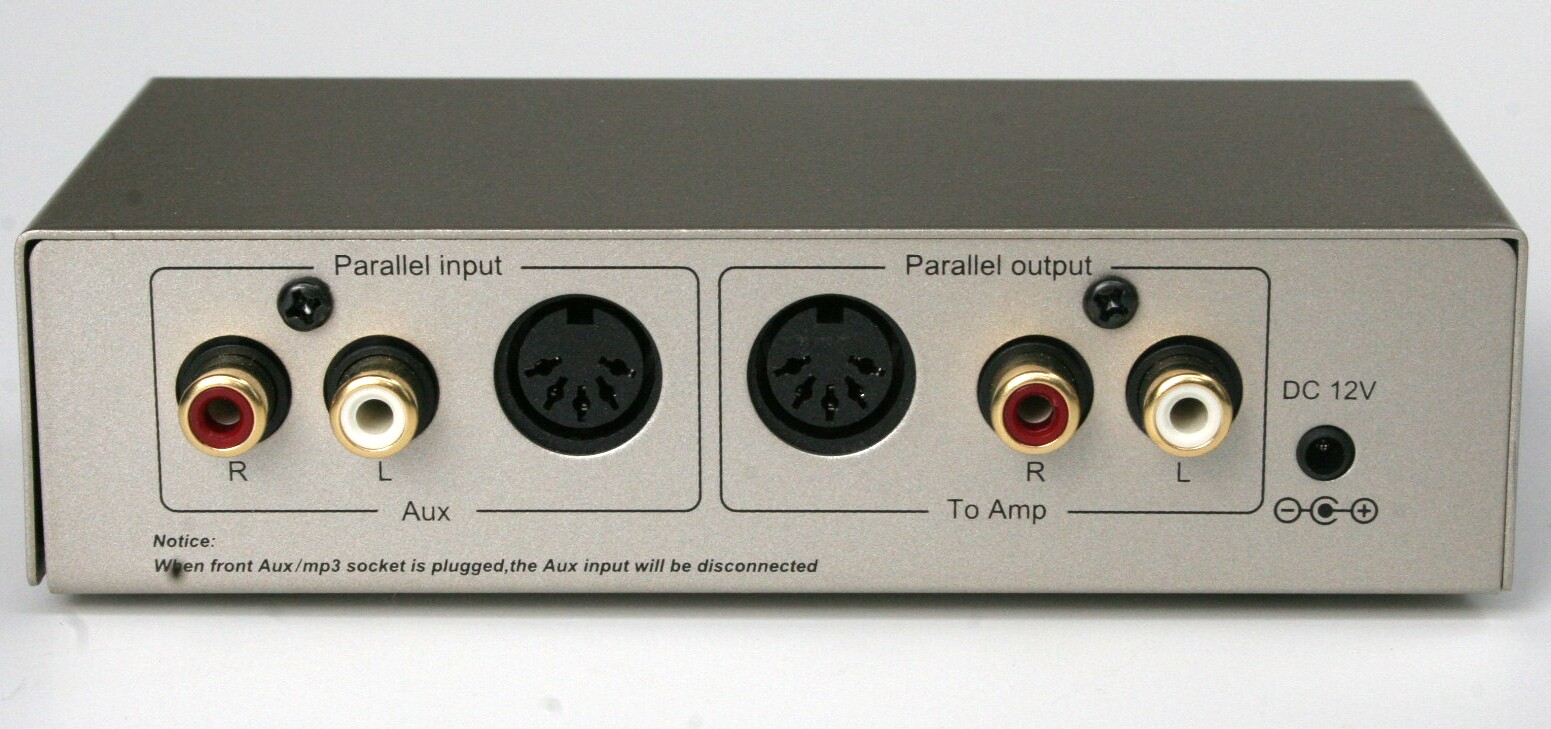

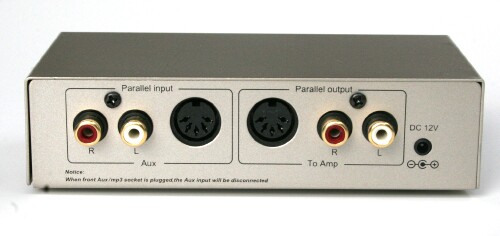

rear

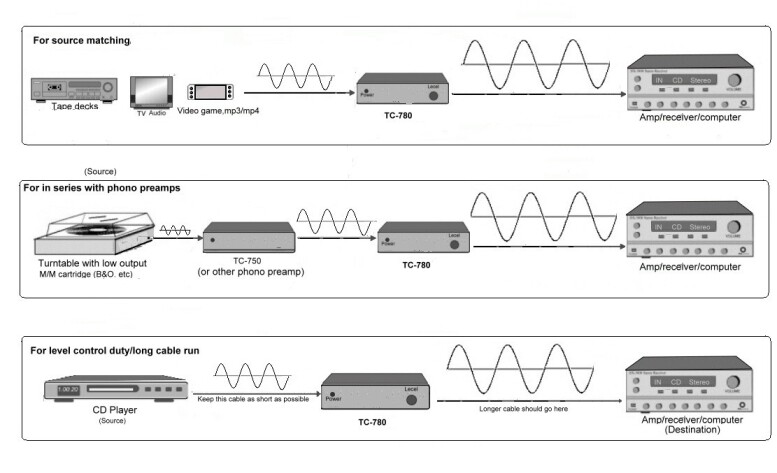

If connecting to a computer, simply substitute it in the diagram for the amplifier shown below.
Use the sound card's LINE INPUT jack, NOT the MIC IN.

Click on the diagram to enlarge.

diagram

Any of the following labelled amplifier/receiver/minisystem input jacks can be used; AUX, TAPE IN/PLAY, LINE IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD (use the L&R AUDIO jacks so labelled; ignore the actual yellow VIDEO jack if present).

box

The TC-780LC is NOT intended for mobile use; connecting it to a vehicle
electrical system causes specific internal damage which is not covered by warranty.
Our TC-780i model is recommended for mobile / vehicle applications.

freq response 20hz-20,000hz +/- 0.5dB, S/N ratio >80dB
CE certified; LED power indicator
gold plated jacks and black anodized metal casing
150mV input produces 2.0V output (at max volume setting)
both RCA and DIN (5 pin) inputs and outputs
Front panel stereo minijack for connecting MP3s, iPods
Power switch (on level control)
12 volt DC operation; will work anywhere in the world
AC adaptor is included
Dimensions 180mm x 73mm x 37mm
One year defective repair or exchange warranty

TC-780LC

FAQ

750 plugs

and

residents
can purchase the black version

using;

Priority Mail shipping is $7.00 for a total of $56.50

Simply click on the appropriate payment logo
(above for BLACK, below for SILVER)

or the silver version

using;

Visitors from other places worldwide

can purchase the black version

using;

Priority Mail worldwide shipping is $16.00 for a total of $65.50

Simply click on the appropriate payment logo
(above for BLACK, below for SILVER)

or the silver version

using;

To purchase, simply click on the logo for your choice of payment method above;
US and Canadian buyers can also use our mail and
