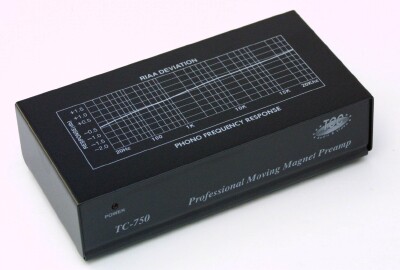

Our TCC TC-750 Phono Preamp:
85dB S/N Plus A Lifetime Limited Warranty!
Available in BLACK or SILVER Finish

$43.50 plus shipping (see below)

This product features better sound and performance than the phono preamps built into most component stereo receivers and amps! Compare the TC-750's specs to those of pricier brands like NAD and Cambridge Audio; ours are as good or better. Computer-designed PCB layout and 1% tolerance resistors resulting in extremely accurate RIAA equalization (coupled with a s/n ratio a CD player might envy) makes this THE choice for use with high-end audio systems and sound cards. If you're looking to make archival quality copies of LPs on CD-R, or just looking to hear that analog LP sound produced without coloration or added background noise, this is definitely for you. Very nice packaging makes this an excellent gift choice for the audio perfectionist. A limited lifetime repair or replacement warranty insures years of trouble-free use. Now available in either BLACK or SILVER finish!

12 volt DC operation; will work anywhere in the world
RIAA freq response 20hz-20,000hz +/- 0.5dB, S/N ratio >85dB
THD <0.05%, input sensitivity 3.0mV, gain 40dB
nominal / max output 300mV / 1.8V
output impedance 1k ohm, input 47k ohm / 220 pF
gold-plated jacks and black anodized metal casing
ground wire terminal; click HERE to see why this feature is a MUST!
LED power indicator; free RCA cable and miniplug adaptor included
142mm long / 73mm wide / 37mm high
limited lifetime defective repair or exchange warranty

If connecting to a computer, simply substitute it in the diagram for the amplifier shown below. Use the sound card's LINE INPUT jack, NOT the MIC IN.

TC750 hookup diagram

Any of the following labelled amplifier/receiver/minisystem input jacks can be used; AUX, TAPE IN/PLAY, LINE IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD (use the L&R AUDIO jacks so labelled; ignore the actual yellow VIDEO jack if present).

We include free of charge a stereo patch cord (for connection to a stereo)
and a mini-plug adaptor (to use with computers). The AC adaptor is also included.

Ready to purchase?
We offer multiple payment methods.

Choose the version you wish to purchase at the right. Make sure the shipping destination (USA, Canada or worldwide) that appears is correct; you can change this by clicking on the small flags at the bottom. Next, choose a payment method by clicking on a logo. Your transaction is then completed on the payment processor's secure website. Because NO personal or payment info is entered here, your online purchase is as secure as possible. Amazon Payments usage requires prior membership, but Paypal is happy to accept any major credit card. Both methods provide immediate online and email payment verification; tracking and customs form information is provided when we ship to you (most orders are sent same or next business day).

	US Priority Mail shipping is $6.00 Canada USPS shipping is $11.00 Worldwide USPS shipping is $17.00
Items shipped outside the USA may be subject to import duty, fees and tariffs as determined by the destination country; these costs are usually collected at the time of delivery and are the buyer's liability. We do not mark merchandise as "gifts" or otherwise falsify customs declarations.
