Preamp with Aux Input
and Output Level Control

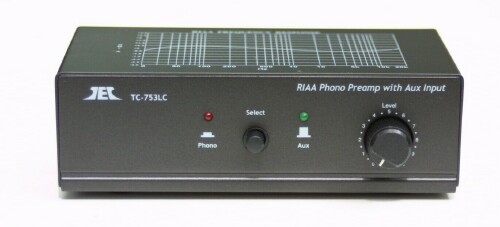

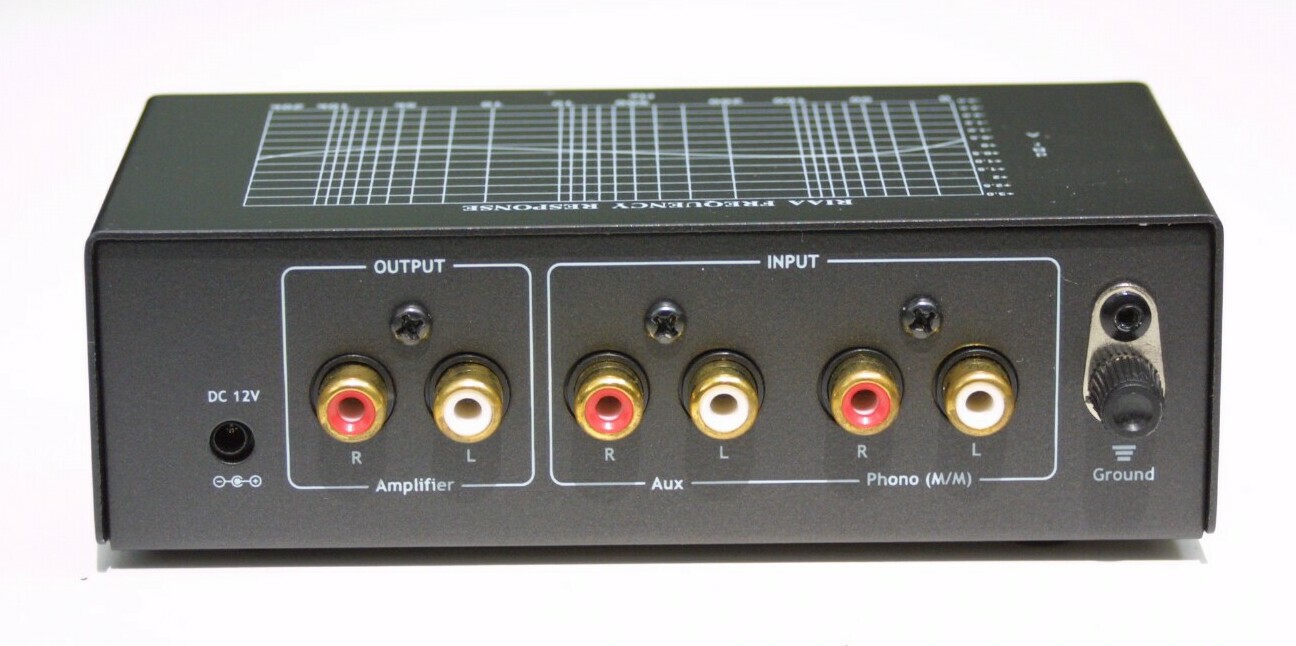

Available in both BLACK
by the lack of inputs on your minisystem or home theatre receiver?
Tired of having to unplug your TV audio or MP3 player whenever you want
to play or record an LP? This phono preamp is for you. Available

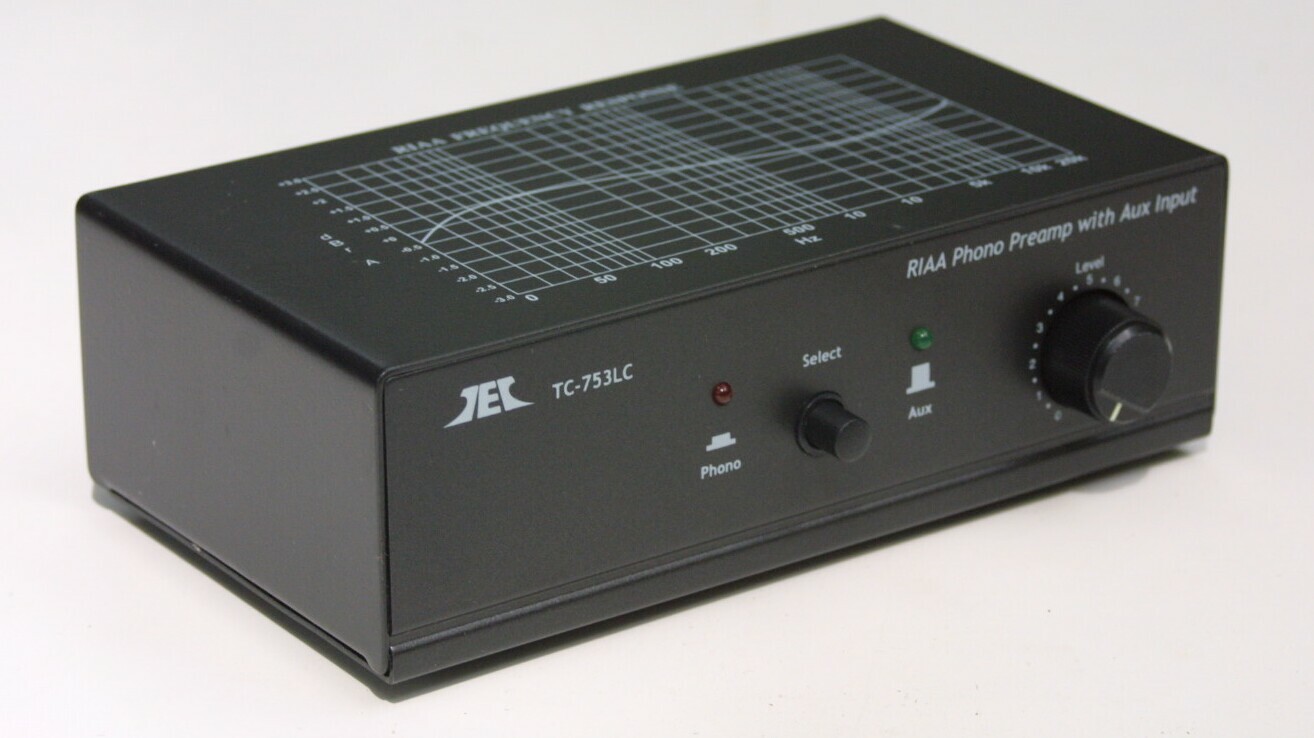

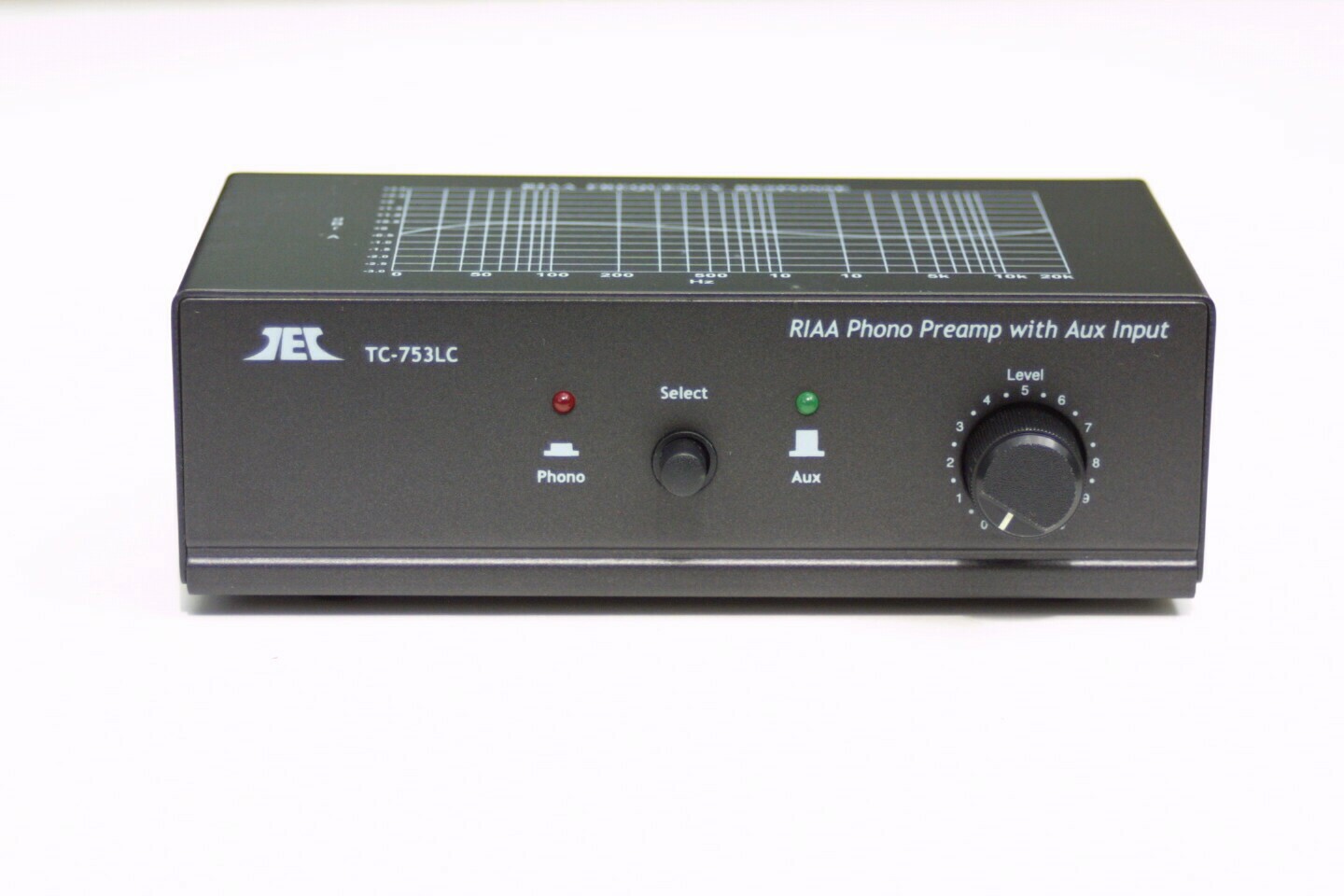

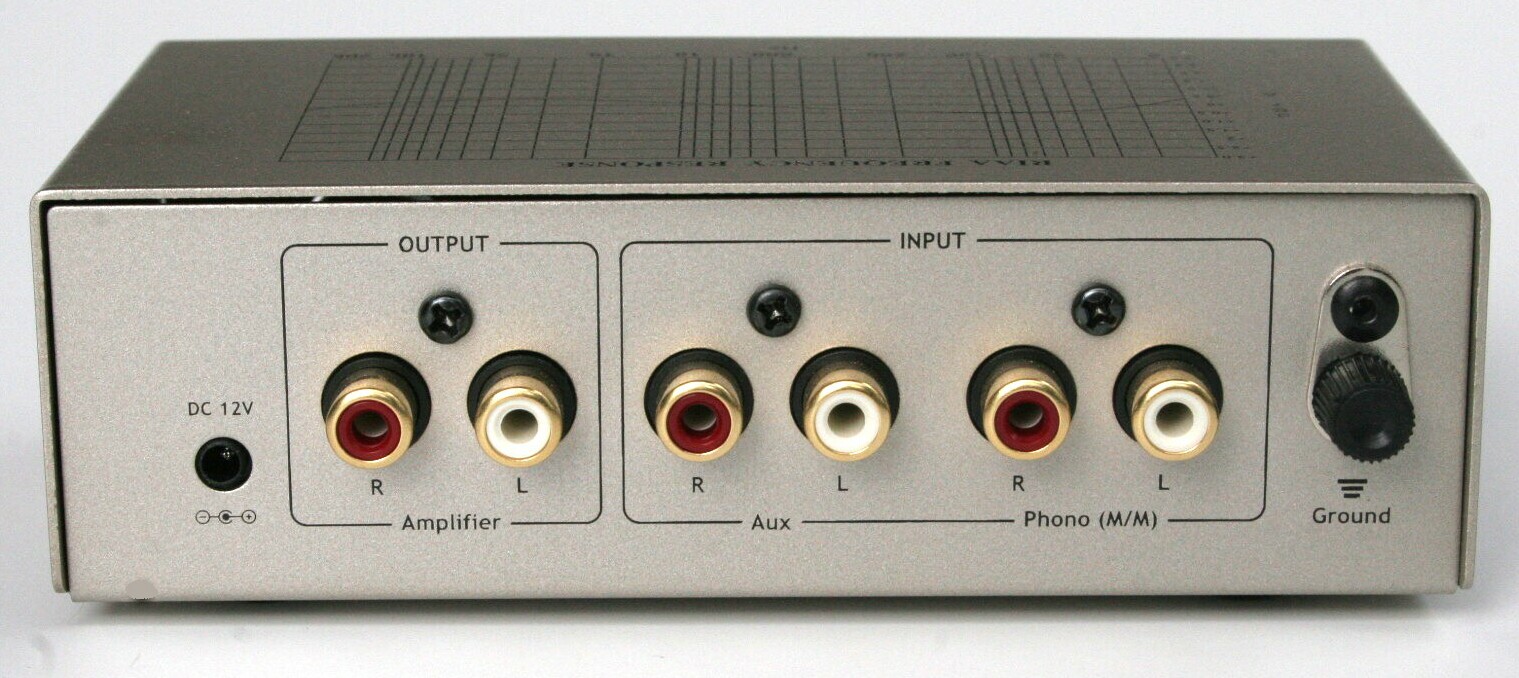

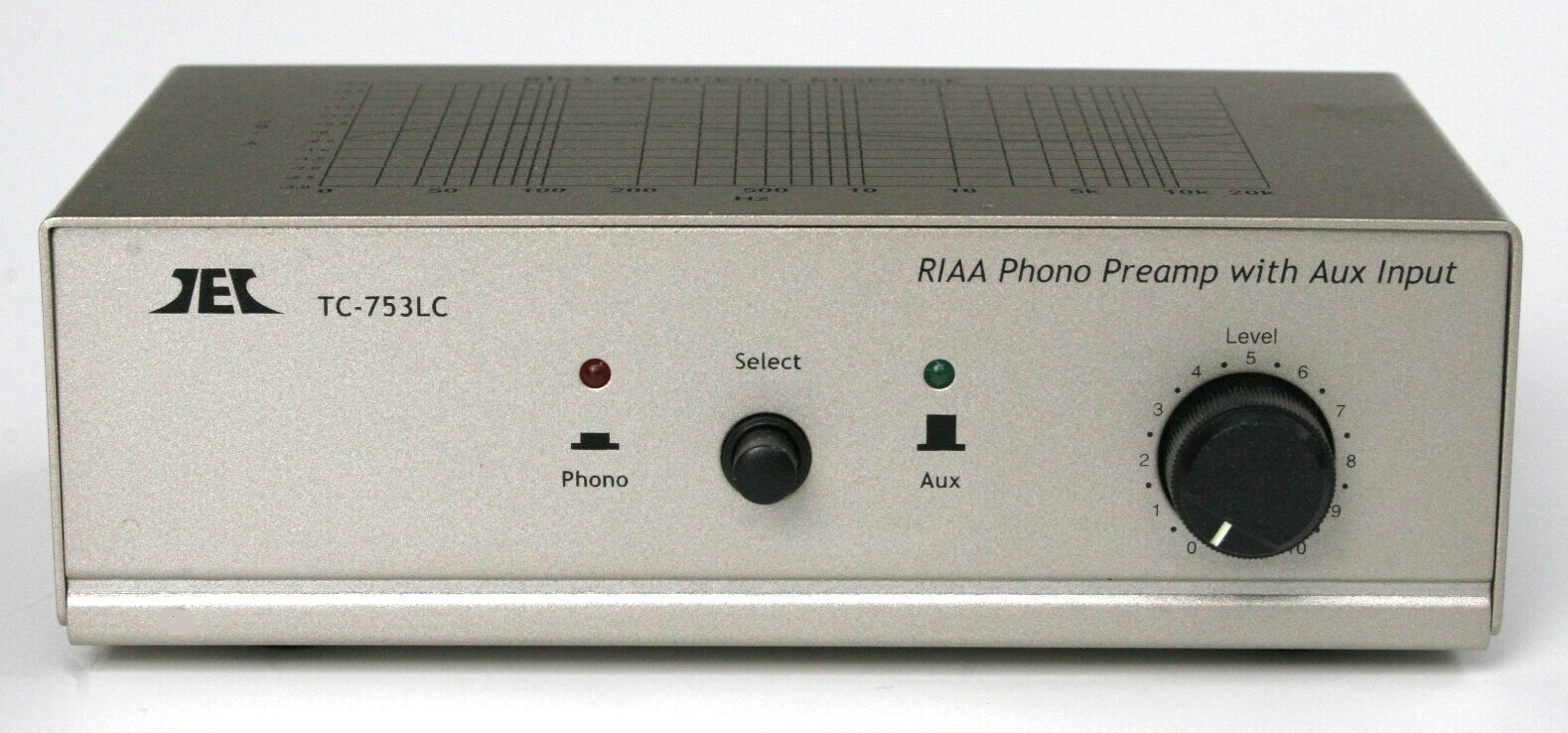

SILVER and BLACK finish. Click on
the images to view larger versions.
20hz-20,000hz +/- 0.5dB
S/N ratio 80dB
anodized metal casing
aux/phono indicators show switch position from a distance
- Ground wire terminal;
why you need this feature
- LED power indicator;
- free RCA
miniplug adaptor included
- Dimensions 142mm x 80mm x
- One year defective repair or exchange

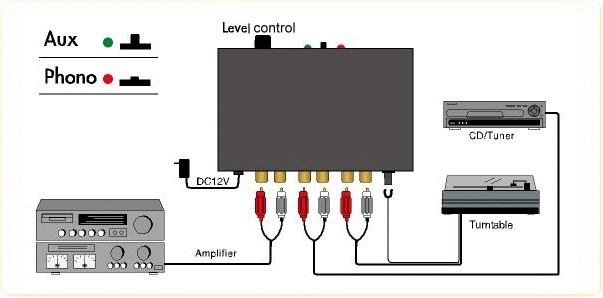

If connecting to a
computer, simply substitute it in the diagram for the receiver shown
below. Use the sound card's LINE INPUT jack, NOT
the MIC IN. Click on the diagram to view a much larger
amplifier/receiver/minisystem input jacks can be used; AUX,
IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD (use the L&R
jacks so labelled; ignore the actual yellow VIDEO jack
if present). Plug your MiniDisc, TV audio, CD Player or whatever into
the preamp's AUX input, and press AUX to hear.
charge a stereo patch cord
(for connection to a receiver or minisystem)
and a mini-plug adaptor for use with computers.
The AC adaptor is also included.
